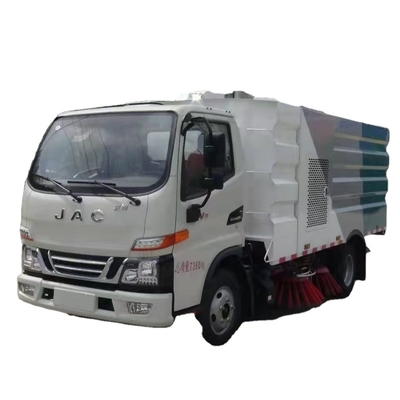

vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
Airport runway sweeper sweeps roads mainly by suction and blowing functions, and by auxiliary methods such as flushing and magnetic suction and wet dust removal. The vehicle is suitable for road cleaning of city streets, squares, airports, wharfs, etc. It works by picking up gravel, rind, scrap of paper, cigarette end, kernel, plastic bag, stone, brick, grains of sand, dust, and etc.
"vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck :
"1. It is set up a complete new pneumatic conveying system with parts wind volume filtration for parts reverse blow circulation as well as wind channel switch air damper during rainy day operation, which can realize working condition switch between dry dust collection operation and sweep operation in rainy day, so which can working in all weather condition without reference to weather condition.
2. The whole machine adopted vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck, which have following character: antisepsis, antirust, large room and long time operation continuity, especially it is good for longtime operation in high express way, water in water tank can be used for dust collection and normal clean with road condition, floating multidimensional reverse blow Pneumatic Conveying circulation can be flatted, so which can increase effect for sucker largely.
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck, which can decrease damage for wine channel and fan, and it is set up high efficacy spray dust collection system in dust box that can resolve problem for dust rise completely during seep road and dust collection car is discharge.
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
3. Front sweep in right and left can work individual or linkage in order to ensure for confirm left front sweep work individual or right front sweep work individual in effect. Sweep trap speed can be adjusted and chose for high, middle and low level in according with its relative devices, which can ensure get good sweep effect and cut down operating cost under all pollution situation.
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck | |||
Vehicle Parameters | |||
General | Vehicle Model | YZR5082GSSHFE6 | |
Vehicle Brand | CLW | ||
Chassis Brand | JAC | ||
Overall Dimension(mm) | 7860x2470x3190(mm) | ||
GVW/Curb Weight(kg) | 8280 /3790 | ||
Chassis Parameters | |||
Cab | Cab Seat | 2 | |
Air Conditioner | Optional | ||
Engine | Fuel Type | diesel | |
Engie Model | D30TCIF2 | ||
Engine Brand | Yunnei | ||
Emmission Standard | Euro4 | ||
Chassis | Drive Type | 4*2 | |
Wheelbase(mm) | 3365 | ||
Tyre Specification | 7.50R16LT 14PR | ||
Tyre No.(pcs) | 6 | ||
Max Speed(km/h) | 100 | ||
Leaf Spring | 9/12+6 | ||
Axle Load | 3000/5280 kg | ||
F/R Tread | 1695/1600 kg | ||
F/R Overhang | 1051/1550 mm | ||
Super structure | |||
Tank | Tank capacity | 4500 litre | |
Tank material | Carbon steel |
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
We are manufacture of all kinds of Jac road sweeper truck, road sweeper trucks and other trucks
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;
7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;
9. truck tonnage: 3 to 60tons;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
JAC road sweeper truck : naked with waxing, bulk,ro-ro, flat rack and container ship
WELCOME TO VISIT OUR FACTORY TO BUY JAC road sweeper truck!
Ms.Joyce (sales manager) Whatsapp/Mobile : +86 13545915671
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
More details of Jac road sweeper truck, please contact with Ms.Joyce
Ms.Joyce (sales manager) Whatsapp/Mobile : +86 13545915671, Wechat : 13545915671
vacuum sweeper truck Factory JAC 4*2 vacuum road sweeper truck
