Startseite /Produkte/Selbstfahrende Straßenwäscher/Factory High Efficiency Electric Garbage Truck Japan Sweeper Suction Adjustable Speeds

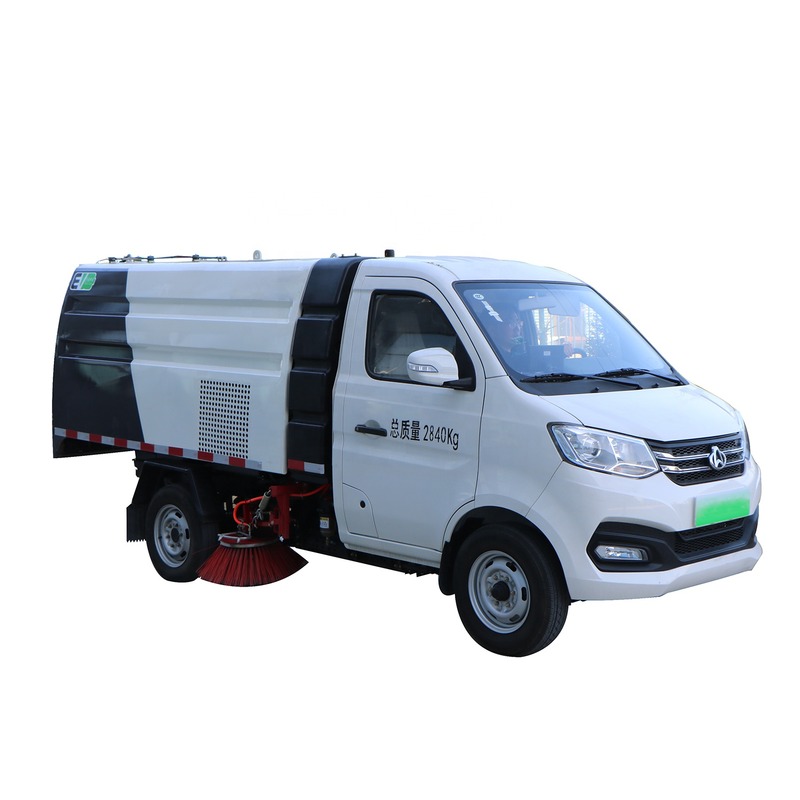

Factory High Efficiency Electric Garbage Truck Japan Sweeper Suction Adjustable Speeds

1 Piece
MOQ
$70,312.00(1 - 4 Pieces) $66,796.00(>=5 Pieces)
Preis
Factory High Efficiency Electric Garbage Truck Japan Sweeper Suction Adjustable Speeds
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Other
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition: New
Dimension(L*W*H): 5060*1580*2010mm
Weight: 2320 kg
Warranty: 1 Year
Product name: Street Washing Sweeper Truck
Battery: 41.86 Kwh
Motor: Permanent Magnet Synchronous Motor
Cleaning Process: Water
Water Tank Capacity: 350 L
Speed: ≤80 km/h
Range: ≥260 km
Rated capacity: 390 kg
Gradeability: ≥20%
Charge Time(h): 2 charging methods, fast and slow
Grundinformation
Zahlung und Versand AGB
Packaging Details: steel pallet
Supply Ability: 50000 Piece/Pieces per Year
Produkt-Beschreibung
Products Description
project name
Performance indicators









Project name
Vehicle model
5030TS
Length*Width*Height(mm)
5060×1580×2010
Maximum Total mass（kg）
2840
Curb weight（kg）
2320
Loading capacity（kg）
390
Battery power(Kwh)
41.86
Driving Mileage(km)
260 (Condition Method)
Gradeability(%)
≥20%
Front/ Rear track(mm)
720/1640
Maximum speed (full load)(km/h)
80
Wheelbase(mm)
2700
Chargeing time(H)
2 charging methods, fast and slow




Special features
Cleaning width (mm)
2100
Cleaning speed (km/h)
5～10
Discharging Angle°
≥48
Cleaning rate (%)
≥98
Water Tank volume (L)
350
Trash can volume (L)
1500
Maximum inhalation particle size (mm)
30





Others
Traction battery
Lithium iron phosphate battery
Driving motor type
Permanent Magnet Synchronous Motor
Light and signal
headlight + turn signal + brake light + fog light + reverse light + electric horn
Tire
175R14LT 8PR
Steering mode
Electric Power Steering
ABS Electronic traction control system
YF8 Model, four-channel type
Suspension system
Longitudinal leaf spring,dependent suspension

Application
This product is light and flexible, the cleaning system can be widely used in the main road, municipal and airport road surface, urban residential areas, parks, back streets and other road cleaning.

Product Characteristics

1. Middle sweeping disc + rear suction nozzle, which has high cleaning efficiency and good road adaptability. 2. Fully floating suction nozzle can automatically level according to the ground conditions, with large cleaning capacity, fast cleaning speed, simple operation and convenient maintenance. 3. The bearings required for the fan are imported bearings, high-power wear-resistant high-pressure centrifugal fans, which have the advantages of low noise, large air volume, high efficiency and long service life. 4. The V-belt connection between the motor and the fan can effectively improve the service life of the motor. 5. The cleaning mechanism is controlled by an oil cylinder, the inclination angle of the swing arm type disc brush is adjustable, the ground pressure of the sweeping disc is adaptively adjusted, and it has the function of automatic reset for obstacle avoidance. 6. The lifting and lowering of the trash cans be controlled by the hydraulic system driven by the electric motor, or the lifting can be controlled by the hand-operated oil pump. 7. The electrical system is controlled by an integrated block, and the LCD screen in the cab displays various parameters. The display screen and the CAN bus of the motor carry out data communication. The electrical wiring harness is reasonably arranged, neat and beautiful. One-button operating system in the cab, easy to operate. 8. One-button operating system in the cab, easy to operate. 9. High-quality originals are used for transmission parts, hydraulic parts and electrical components. 10. Anti-rust treatment of non-stainless steel parts, durable.
More Products
Company Profile
Nanjing Skywork Intelligent Technology Co.,Ltd. is One Of The Most Famous of Electric Vehicle Manufacturer. We are a professional engaged in the research, development, sale and service of Golf cart, Electric Cleaning Vehicle, Electric Garbage Sorting Vehicle, Electric Suction and Sweeper Vehicle, Electric Washing Vehicle, Electric Cleaning Transport Vehicle, Electric Transfer Vehicle, Electric Fire Truck, Electric Patrol Vehicle, Electric Sightseeing Vehicle, and Etc.
We are located in Nanjing with convenient transportation access. Our Yearly Production Capacity Of 50,000 Vehicles. Now Our Products Have Been Widely Sold To More Than 60 Countries In The World.
We Follows International Quality Standard To Produce, Control And Inspect The Electric Vehicles. Each Individual Vehicle Is 100% Tested. IQC, PQC And QA Procedures Are Employed To Test Materials, Check Products On The Assembly Lines, And Evaluate Goods Prior To Shipping. International Recognition With ISO9001-2008,ISO14001 , OHSAS18001 Healthy Safety Certification And CE. Further Validates Our Methods And Processes.
We also welcome OEM/ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Production Line
Exhibition
Certifications
Shipping&Packing
FAQ
A) How could I get a sample? Before we received the first order, please afford the sample cost and express fee. Support Video to check products and factory
B) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
C) Whether you could make your products by our color? Yes, The color of products can be customized if you can meet our MOQ.
D) How to guarantee the quality of your products? 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
