Building Material Shops Outdoor Truck Mounted Vacuum Sweeper 1600L Road Sweeper Truck

1.0 Units
MOQ
Building Material Shops Outdoor Truck Mounted Vacuum Sweeper 1600L Road Sweeper Truck
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Building Material Shops, Construction works, Energy & Mining, Municipal Administration
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Engine, Gearbox, Motor, Pump
Condition: New
Dimension(L*W*H): 5845*1990*2370
Weight: 7300 kg
Warranty: 1 Year
Product name: Road Sweeping Truck
Chassis Brand: Qingling
Emission: China VI
Engine Power: 87kw
Total Mass: 7300kg
Payload: 2300kg
Washing Width: 3000mm
Garbage Tank Volume: 4cbm
Water Tank Volume: 1.2cbm
Sweeping Capabilities: 60000m2/h
Grundinformation
Zahlung und Versand AGB
Packaging Details: Standard export package.
Supply Ability: 15000 Unit/Units per Year
Produkt-Beschreibung
Product Information

Product Display
Product Overview

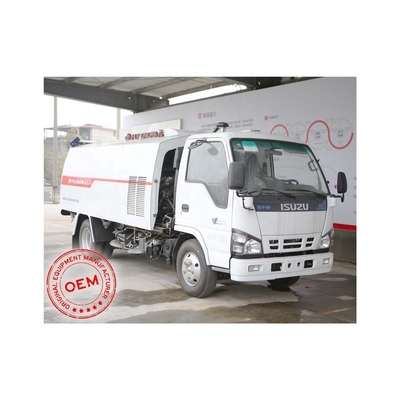

Road Sweeper
The truck is a small road sweeper, whose emissions meet the Euro standard. It has the advantages of compactness, lightness and flexibility, strong sweeping and suction capability, low operating noise, and comfortable operation and driving. It is especially suitable for cleaning and sweeping operations in residential areas, squares, auxiliary roads, and sidewalks. It can effectively expand the area of existing road cleaning and sweeping, and improve efficiency.
PRODUCT SPECIFICATIONS
No.
Item
Data
1
Chassis Model
FLM5070TSLQL6
2
Emission Standard
China VI
3
Engine Model
4KH1CN6LB
4
Total Mass (kg)
7300
5
Curb Weight (kg)
4870
6
Payload (kg)
2300
7
External Dimension
5845*1990*2370
8
Sweeping Width (mm)
3000
9
Sweeping Speed (km/h)
3~20
10
Garbage Tank Volume (cbm)
4.0
11
Clean Water Tank Volume (cbm)
1.2
Sweeping Brooms
There are a total of four sweep disks, which are symmetrically distributed on the left and right sides of the vehicle, with a span of 3m. It has been set to a full-sweep operation state and can be optionally equipped with a separate control function.
There is also a fan-shaped nozzle above the sweeping brush with an angle of 110 degrees, which can be sprayed to reduce dust during sweeping operations.
Central Suction Nozzle
The suction nozzle has a diameter of 200mm and adopts three-point floating support with a rolling rubber wheel, which can adapt to the requirements of different road surfaces. At the same time, it is equipped with a roller lifting adjustment device, which can quickly adjust the position of the roller.

Optional - Suction Nozzle with a Built-in Roll Sweeper

It can be used to clean thick dust on the road surface. The rear end of the suction nozzle is equipped with a rolling sweeping broom, which can sweep the omission garbage or dust into the suction nozzle again.

Optional - Suction Nozzle for Leaves

The front baffle of the suction nozzle can increase the opening degree through an electric push rod to increase the inlet area of the suction nozzle, so that light and floating objects such as leaves can enter and pick up.

Our company more products display

CompanyInfo
Hubei ChongJun Automobile Co.,Ltd

Hubei ChongJun Automobile Co.,Ltd founded in Feb.2021,which mainly focus on export kinds of special truck,such as water truck,fuel truck,fire truck,garbage truck ,wrecker truck ,Tank container,Refrigeration truck,High aera working truck,truck mounted crane,Trailers,etc. Our company specialied in export Chemical tanks,tank containers.Such as carbon steel tank,LLDPE lined steel tank,PTFE tank,Naoh tank,H2so4 tank,HCL tank,fuel tank,bitumen tank,water tank,etc.

Please contact Mr.James by Whatsapp: +86 15826710708(We chat,Mobile)

We welcome clients visit us

Product Packaging

Packing & Shipment: Nude packing by RO-RO,bulk vessel or Flat rack container

Our company, which has independent import and export license, has been selling our products to clients not only in mainland China, but also in Asia,Middle east,Africa,South American,Oceania,etc more than 50 countries and regions.We own 150 sets of advanced equipment. Especially, our large rotational molding machines get numerous national patents. Also, we keep cooperation with Wuhan University of Technology, Beijing University of Chemical Technology, Wuhan Research Institute of Material Protection and China Association of Rotational Molding. We can design and manufacture the ideal products to meet customers' requirements.

faq

1. Who are we?
We are a special truck exporter for kinds of trucks and tanks.Our classical products including steel tank,Plastic tank, Chemical tank,water tank,tank container,PE lined steel tank,Telfon tank,Tank semi-trailer,etc

2. How can we guarantee quality?
Completed Sales contract signed before advanced payment to guarantee customers benefit Always final Inspection before shipment; The third partial inspection is available before shipment;

3. Why choose us?
We have lots of truck sources at special truck field and a series of complete supply chain to grantee our competitive price and efficiency services

4. What services can we provide?
We can provide easy damage parts list and provide some easy damaged parts to customer Video operation guide is available and high efficiency after-service; Accepted Payment Type: T/T,L/C,Money Gram,PayPal,Western Union;
